Processing line and IQF OctoFrost™
OctoFrost™ Complete Line
OctoFrost™ impingement flash (IF) Chiller
OctoFrost™ impingement flash (IF) Chiller

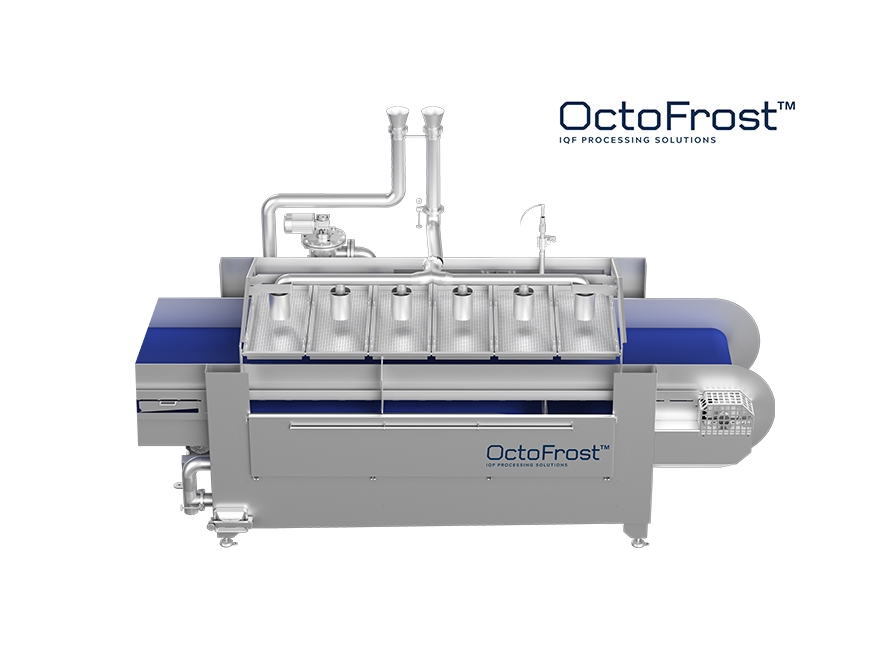

OctoFrost™ IF Chiller
The OctoFrost™ IF Chiller is a cooler tunnel that is used to chill food products such as fruits, vegetables, seafood or even grains. After blanching or cooking, the product is immediately fed into the IF Chiller where ice-cold water gently falls over the product through the rain shower system.
This food processing equipment is designed to reach a product core temperature of 5°C or less. The high volume of filtered and recirculated ice-water is distributed evenly across the whole width and length of the chilling tunnel which deluges the product then immediately exits the chiller to be re-cooled by the PHE.
OCTOFROST™ IMPINGEMENT TECHNOLOGY
Every product is surrounded by a static layer of air that insulates it and slows down heat transfer. The OctoFrost™ IF Chiller uses a rain shower system to break this static layer through impingement technology. This results in the fastest heat transfer through conductivity – the essence of OctoFrost™ Impingement technology.
OCTOFROST™ CROSSFLOW SYSTEM
As opposed to other cooling tunnels on the market, the OctoFrost™ IF Chiller features a cross-flow water system which means that the water which is flowing through the cooler tunnel has the exact same temperature in all zones. The user has absolute control over the chilling temperatures as well as time.
CUSTOMER BENEFITS
The OctoFrost™ IF Chiller comes with a number of benefits for the processors:
High Product Quality and Yield
A well-chilled product has a core temperature of 5°C or less and has retained its moisture and flavor. The OctoFrost™ IF Chiller is designed to achieve just that.
Energy Efficiency
As heat transfer is faster with water than with forced air or traditional counter-flow water chillers, the OctoFrost™ rain shower system achieves the fastest heat transfer. In addition, the energy consumption for water re-chilling is minimal while the water consumption is only caused by water pick-up on the product due to the water recirculation system.
Food Safety
The OctoFrost™ IF Chiller has been designed to exceed all international regulations on food safety and hygiene. All piping, Aisi 316 stainless steel, is backing-gas welded. This method ensures the highest hygienic standard possible.
FOOD PROCESSING EQUIPMENT CAPACITIES
OctoFrost offers a capacity range of 1,000 to 15,000 kg/h for the OctoFrost IF Chiller.
COOLING TUNNELS IN FOOD PROCESSING ARE USED FOR:
- Quickly stop the cooking or blanching process to prevent excessive moisture loss (yield loss);
- Chill the product to the lowest possible temperature for an energy efficient IQF freezing (it is cheaper to drop the infeed temp in the chiller than in the freezer);
- Get quicker crust freezing to limit dehydration for a product of premium quality;
